Tipping Trailers

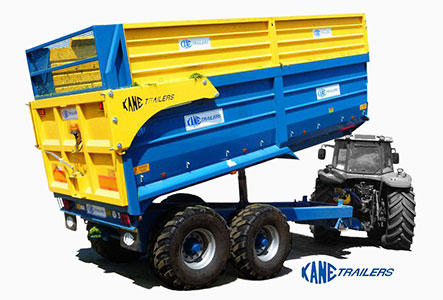

NEW Unique 8mm All Steel HALFPIPE Design for ease of discharge

Hydraulic Rear Door · Hydraulic Brakes

Sprung Drawbar & Tandem Bogie Axles
10 Stud Axles on 400x80 Brake

Length: 4.5m · Width: 2.55m · Depth: 0.8m
8.3m3 Cubic Metre Capacity

385/65/22.5 Tyres as Standard
All Lighting to R.T.A. Regulations

Optional

Air/Hydraulic Brakes · Oversize Tyres 445/65/22.5
High Speed Axles

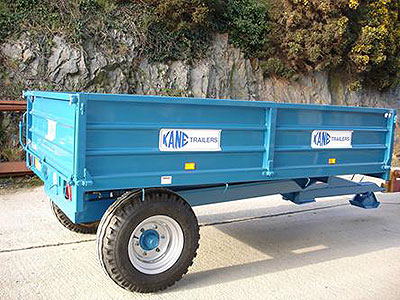

CAPACITY: DS 4 TONNE

BODY SIZE: 3050 x 1830mm (10 x 6 ft) - 510mm Sides (20")

TYRE SIZE: 10 / 75 x 15.3

AXLE WITH HYDRAULIC BRAKES 60mm 6 STUD

CHASSIS SECTION:152 x 75mm CHANNEL

HYDRAULIC RAM: 1 x 2 STAGE RAM

LIGHTS: FULL R.T.A.

Paint - Two Pack

Made From High Tensile Steel

CAPACITY: 8.5 TONNE

BODY SIZE: 3960 x 2340mm (13 x 7 ft 8")

610mm DEEP SIDES (2ft)

TYRE SIZE: 400 x 60 x 15.5 14 ply

AXLES: TANDEM 70mm 6 STUD

With 4 wheel Hydraulic Braking and also with Brakeaway Brake / Handbrake

HYDRAULIC RAM: 1 x 3 STAGE RAM

HYDRAULIC BRAKES & LIGHTS: FULL R.T.A.

Paint - Two Pack
Made from High Tensile Steel
Grain Sides Available
Bale Extension Available

CAPACITY: 10 TONNE

BODY: Manufactured from High Grade Steel

4270 x 2340mm (14 x 7 ft 8”)
610mm DEEP SIDES (2ft)
Tapered Body

TYRE SIZE: 500 / 50 / 17    14 ply

AXLES: Tandem 70mm 6 STUD

With 4 wheel Hydraulic Braking and also with Brakeaway Brake / Handbrake

HYDRAULIC TIPPING CAPACITY: 12 tonnes

HYDRAULIC BRAKES & LIGHTS: To FULL R.T.A.

GRAIN SIDES OPTIONAL - BALE EXTENSION OPTIONAL

PAINT FINISH: Standard Colour Blue Full 2 Pack Paint System

14.9 Cubic Metres

Rollover Cover

Fitted with 15" Extension Sides:

19.5 Cubic Metres

Body 18'x 8'2"x 7'8"

STANDARD SPEC

8 Stud Axles

Sprung Drawbar

Hydraulic Brakes & Lights

Fitted with 550/45/22.5 Tyres (as shown)

Complete with Grain Door

Side Filling Side & 15" Extensions to make trailer square all round

29 Cubic Metres

Two pack Paint

High Tensile Steel
